Preview Apps

Preview apps are a way to create fork applications that are built from a Pull Request (Merge Request). Preview apps are only supported for Git repository based projects.

Enable preview apps

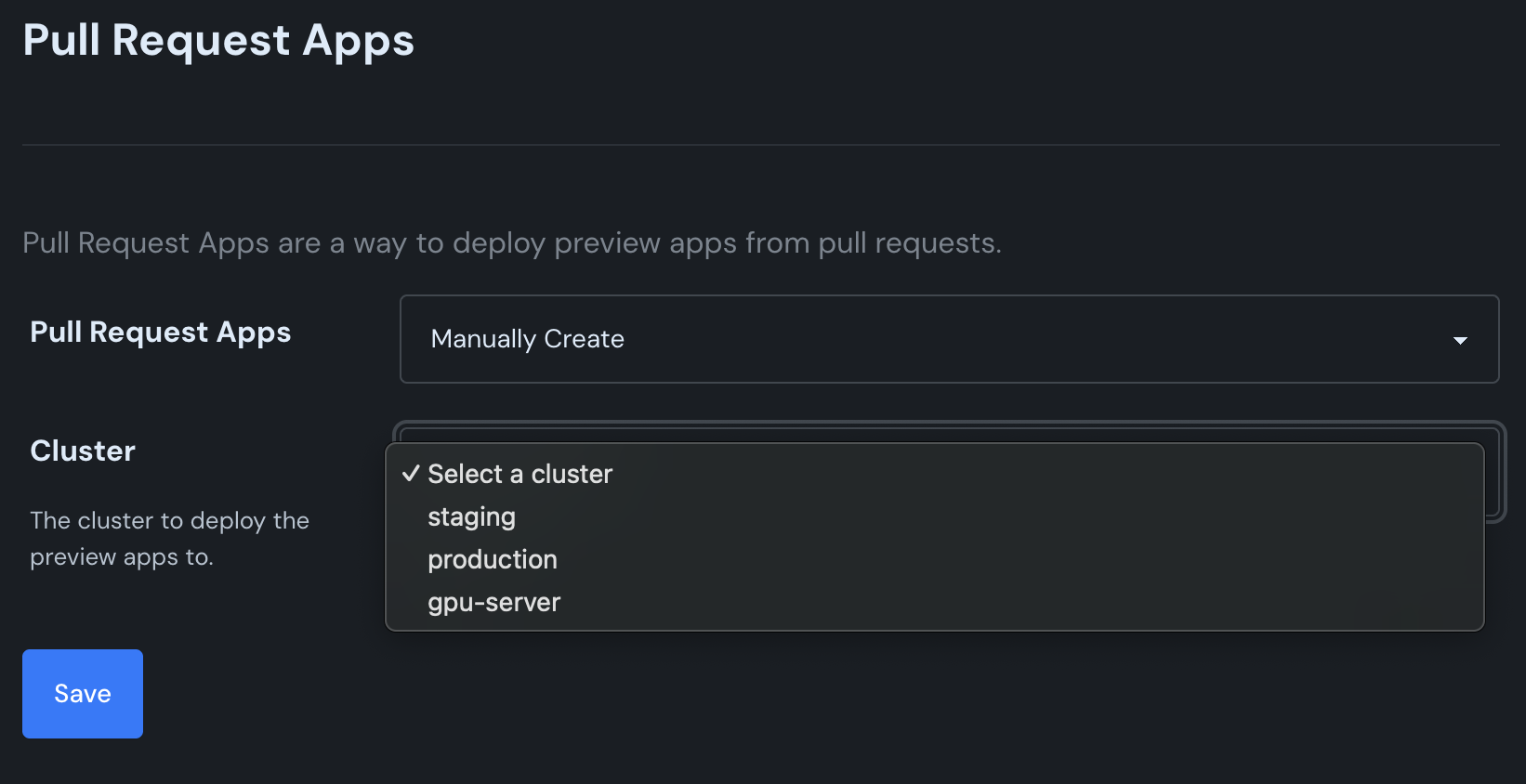

Go to Projects → Settings and enable preview apps. Set up which cluster you want to deploy the preview app to. Often, you'll want to set up a separate cluster so that the preview apps aren't deployed on the same cluster as your production application.

Create your first preview app

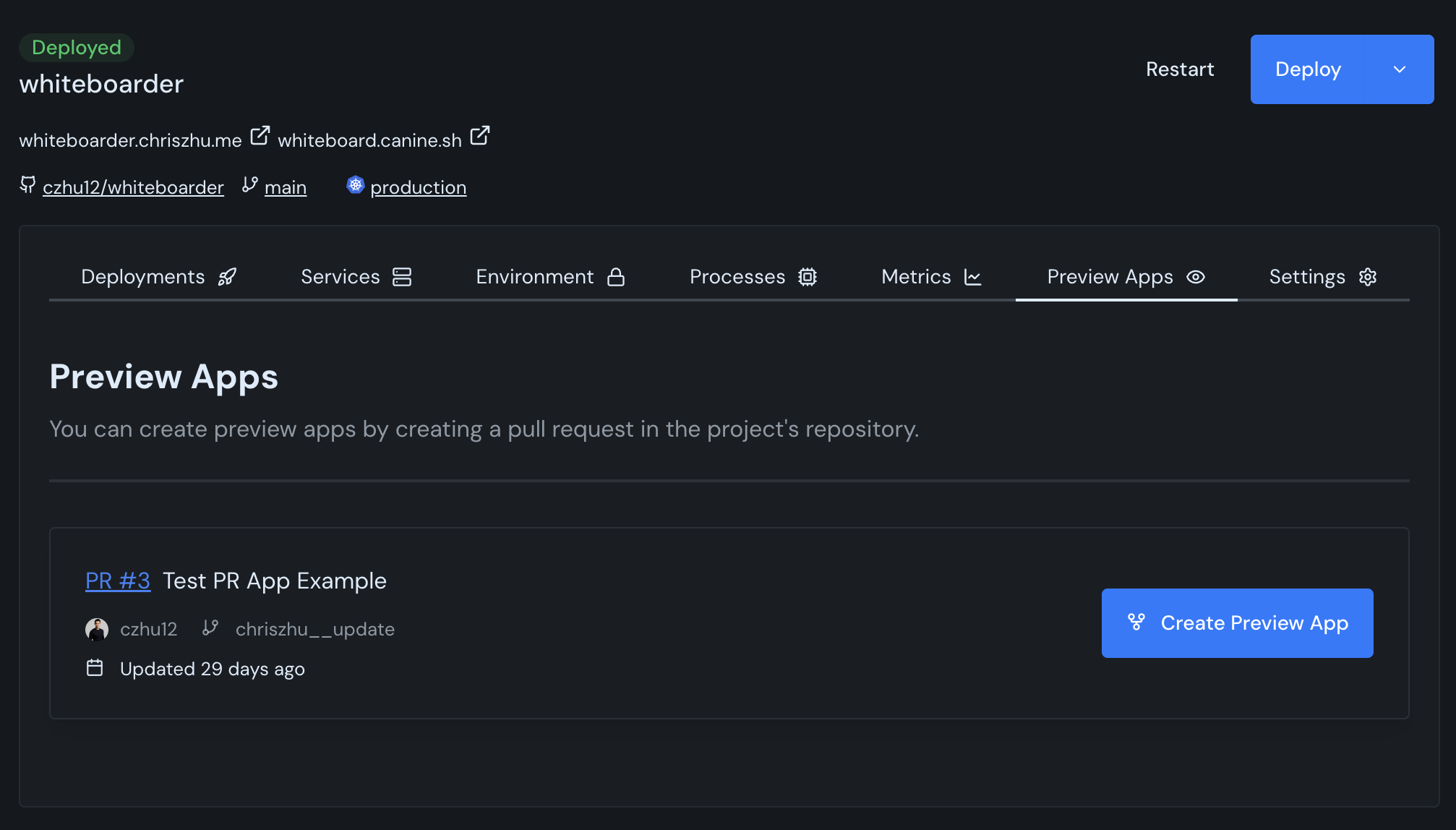

Navigate to Projects → Your Project → Preview Apps. You should see any open pull requests available to create a preview app.

Configuring preview apps

To automatically configure your preview apps with environment variables, services, etc, create a YAML file in the root of your project called canine.yml. An example canine.yml file:

scripts:
  predeploy: echo "Pre deploy script"
  postdeploy: echo "Post deploy script"
  predestroy: echo "Pre destroy script"
  postdestroy: echo "Post destroy script"
services:
  - name: web
    container_port: 6379
    service_type: web_service
  - name: bg-worker
    container_port: 6379
    service_type: background_worker
environment_variables:
  - name: DATABASE_URL
    value: postgres://localhost/test

The available variables are:

Key	Type	Description
scripts.predeploy	string	Script to run before deployment
scripts.postdeploy	string	Script to run after deployment
scripts.predestroy	string	Script to run before destruction
scripts.postdestroy	string	Script to run after destruction
services	array	List of services to deploy
services[].name	string	Name of the service
services[].container_port	number	Port the container exposes
services[].service_type	string	Type of service (web_service, background_worker, cron_job)
environment_variables	array	List of environment variables
environment_variables[].name	string	Name of the environment variable
environment_variables[].value	string	Value of the environment variable

Templating canine.yml with ERB

Often, you'll want to template the configuration of a new preview app. canine.yml files support ERB templating. For example, a common use case is to set up each preview app with its own separate database, and then delete that database when the preview app is destroyed.

You can achieve something that with a canine.yml file like:

environment_variables:
  - name: DATABASE_URL
    value: "postgres://postgres_url/preview_app_database_<%= number %>" # Have each preview app have its own database based on the pull request number
scripts:
  predeploy: "/script-to-create-database" # Create the database when the preview app is first created
  postdestroy: "/script-to-drop-database" # Delete the database when the preview app is destroyed
services:
  - name: web
    container_port: 6379
    service_type: web_service

The available variables are:

Variable	Type	Description	Example
cluster_id	string	ID of the cluster the preview app is deployed to	1
cluster_name	string	Name of the cluster the preview app is deployed to (within Canine)	staging
project_id	string	ID of the new preview app	1
project_name	string	Name of the new preview app (within Canine)	whiteboarder-5
number	number	Preview app number	5
title	string	Title of the preview app	"Bump version of whiteboarder"
branch_name	string	Branch the preview app is deployed from	bump_version
username	string	Git username of the pull request creator	czhu12
